MATERIALS


Skirting: Aluminum polymer alloy

Connectors: Reinforced glass nylon

Paint finish: Epoxy powder coat


APPROVALS AND WARRANTY


CE Marked to BS EN 442-1

Tested by BSRIA, TUV and KTH

10 year warranty: Aluminum friendly inhibitor required



SPECIFICATIONS


Operating pressure: Typically 2-3 bar

Max testing pressure: Typically 10 bar

Max operating length: Typically 65-82ft per 15mm/16mm feed



Flow temp Vs Watts per M
Profile Flow Rate 72ºC (△50ºC) 45ºC 50ºC 55ºC 65ºC 75ºC
Typical Heat Pump / Renewable Energy Source Typical Boiler; Gas, oil LPG or Pellet

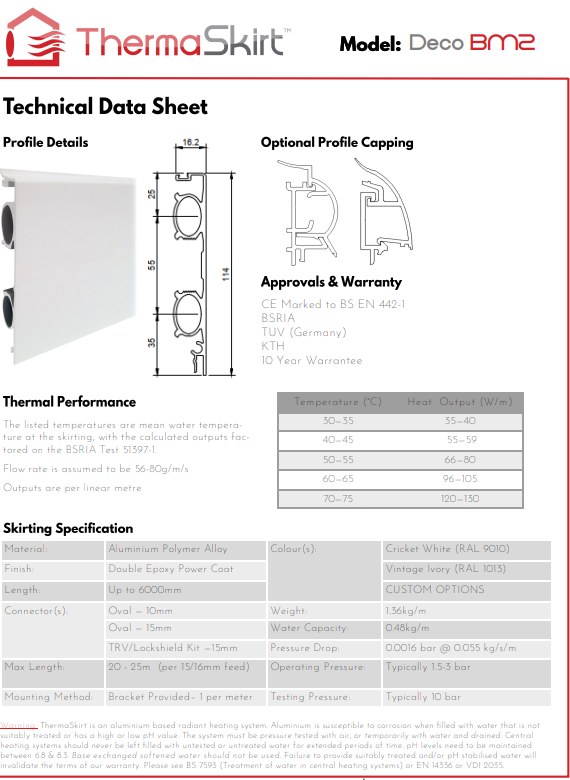

DECO BM2 56-80 gm/s 134 59 66 80 105 143
URBAN LT 56-80 gm/s 148.5 59 73 88 124 159
CLASSIC TS 56-80 gm/s 148.5 59 73 88 124 159

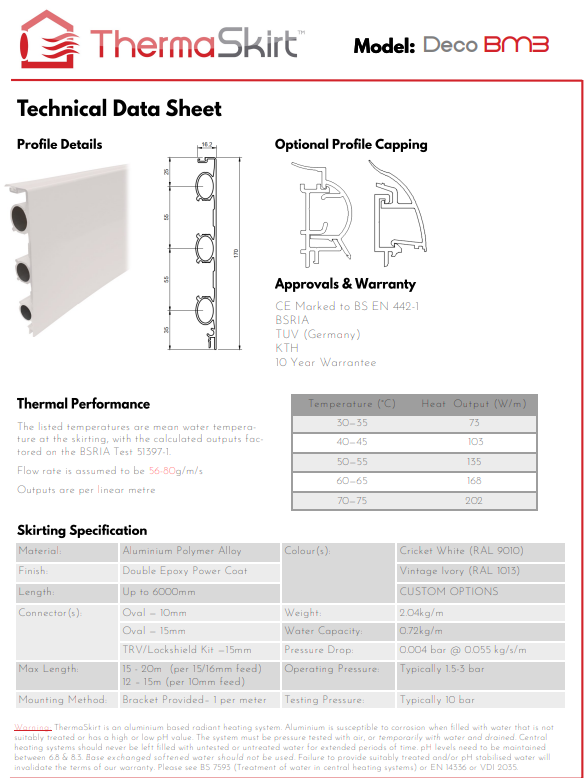

DECO BM3 56-80 gm/s 197 87 98 119 166 215

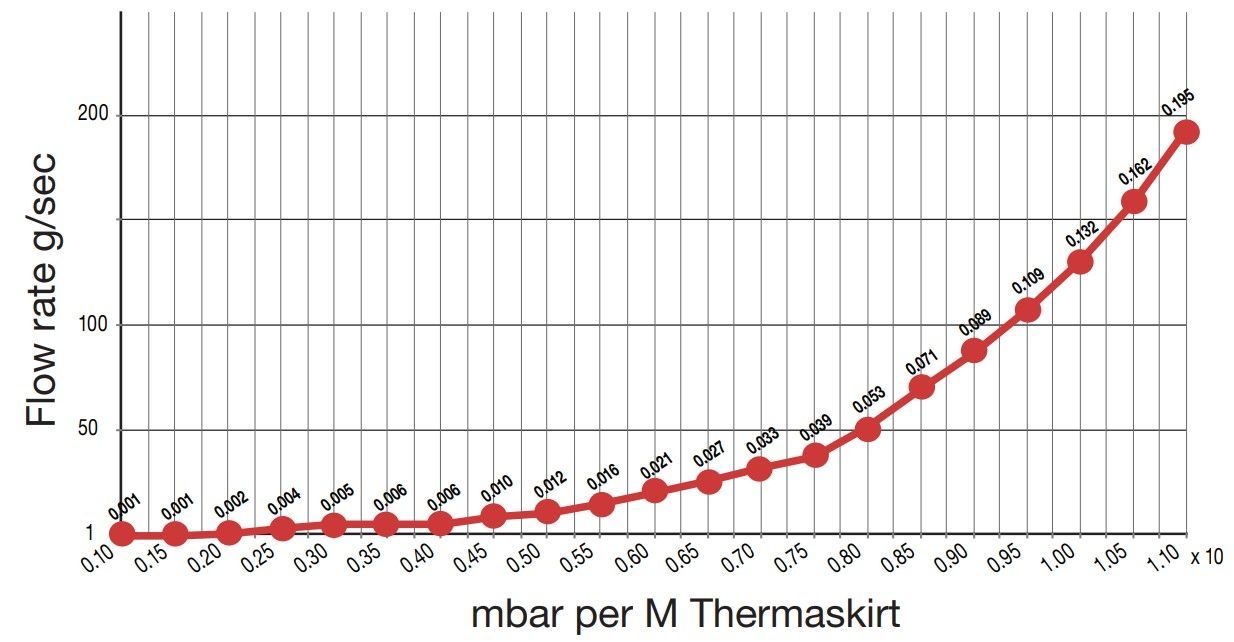

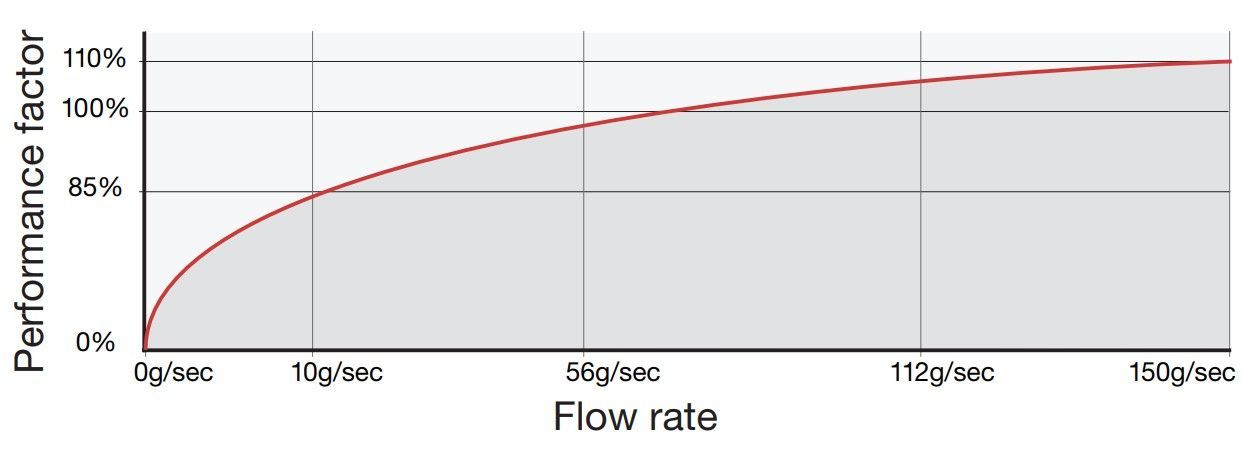

PERFORMANCE VS FLOW RATE


Output in Watts/m (or BTU/ft) is only slightly affected over a wide range of flow rates. Our typical test data is based on 56g/sec in accordance with the BSRIA test BS EN 442-1. Output data is given here for flow rates between 10g/sec & 112g/sec which covers the lower and upper ranges of suitable performance for central heating systems.

MATERIALS


Skirting: Aluminum polymer alloy

Covers: 316 stainless steel

Paint finish: Epoxy powder coat


APPROVALS


CE Marked to Low Voltage Directive

Tested to EN 60335-2-30 (Room Heaters)

EMC Test Certificate No C106457


ELECTRICAL RATING


Supply: 220~240V

Inrush: Typically 0.36 A/ft at 50ºF

Protection: Type C 30mA RCBO to IEC 60898


Recommended max. Skirting lengths (m) Vs Type C RCBO circuit rating
Op temp 220-240vAC Heat output 220-240vAC Room Start up temp 10A 16A 20A 32A
40~45°C 50~65w/m 10°C 30m 40m 50m 70m
55~65°C 85~95w/m 10°C 20m 30m 40m 60m
65~70°C 115~125w/m 10°C 15m 24m 30m 50m

Recommended max. Skirting lengths (m) Vs Type C RCBO circuit rating
Op temp 220-240vAC Heat output 220-240vAC Room Start up temp 10A 16A 20A 32A
40~45°C 80~95w/m 10°C 20m 30m 40m 60m
55~65°C 120~140w/m 10°C 15m 20m 25m 35m
65~70°C 160~180w/m 10°C 10m 16m 20m 32m
